Class of Operation: aR
Rating:
Amps: 100-630A
Volts: 1500Vdc
Interrupting Rating: 250kA@1500Vdc
Standards/Approvals for Reference:
2IEC 60269/GB 13539 2CE, TUV 2RoHS compliant
Description: A range of square body high
speed fuse link for semiconductor protection.
Cross-section: 74x74mm(size 3)

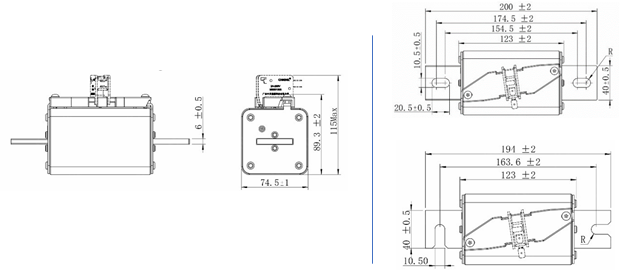

Dimensions(mm)
Catalogue Numbers
Items | Catalogue Numbers | Electrical Characteristics | Bolt size | Installation torque （N.m） | |||||
Rated Current RMS-Amps | I2t (A2Sec) | Watts Loss | |||||||
Bolted blade | DIN blade | Pre-arc | Clearing at 1500V | Bolted blade | DIN blade | ||||
1 | ESH6620 | ESH6636 | 100 | 1137 | 3127 | 22 | M10 | 24.0±3.0 | 24.0±3.0 |
2 | *ESH6621 | *ESH6637 | 125 | 1880 | 5169 | 25 | M10 | 24.0±3.0 | 24.0±3.0 |
3 | *ESH6622 | *ESH6638 | 160 | 3223 | 8864 | 35 | M10 | 24.0±3.0 | 24.0±3.0 |
4 | *ESH6623 | *ESH6639 | 200 | 3342 | 9190 | 40 | M10 | 24.0±3.0 | 24.0±3.0 |
5 | *ESH6624 | *ESH6640 | 250 | 5941 | 16337 | 45 | M10 | 24.0±3.0 | 24.0±3.0 |
6 | *ESH6625 | *ESH6641 | 315 | 9617 | 26447 | 60 | M10 | 24.0±3.0 | 24.0±3.0 |
7 | *ESH6626 | *ESH6642 | 350 | 16650 | 45788 | 70 | M10 | 24.0±3.0 | 24.0±3.0 |
8 | *ESH6627 | *ESH6643 | 400 | 22404 | 61612 | 80 | M10 | 24.0±3.0 | 24.0±3.0 |
9 | *ESH6628 | *ESH6644 | 450 | 32634 | 89744 | 95 | M10 | 24.0±3.0 | 24.0±3.0 |
10 | *ESH6629 | *ESH6645 | 500 | 42624 | 117216 | 105 | M10 | 24.0±3.0 | 24.0±3.0 |
11 | *ESH6630 | *ESH6646 | 550 | 56370 | 155018 | 125 | M10 | 24.0±3.0 | 24.0±3.0 |
12 | ESH6631 | ESH6647 | 630 | 72790 | 200400 | 130 | M10 | 24.0±3.0 | 24.0±3.0 |
